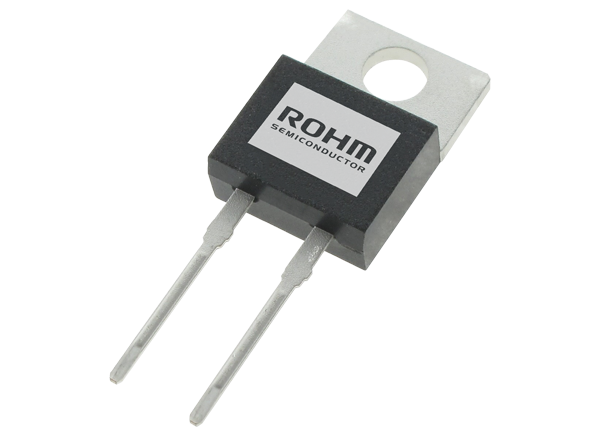

ROHM Semiconductor TO-220ACG SiC Schottky Barrier Diodes

ROHM Semiconductor TO-220ACG Silicon Carbide (SiC) Schottky Barrier Diodes (SBD) feature a reverse voltage range of 650V to 1200V and a continuous reverse current range of 1.2µA to 20.0µA. SiC technology enables these devices to maintain a low capacitive charge (QC), reducing switching loss while enabling high-speed switching operation. In addition, unlike Si-based fast-recovery diodes, where the reverse recovery time increases along with temperature, SiC devices maintain constant characteristics, resulting in better performance.

The ROHM Semiconductor TO-220ACG SiC Schottky Barrier Diodes feature a maximum junction temperature of 175°C.

Features

  • Short recovery time
  • Reduced temperature dependence
  • High-speed switching
  • 650V to 1200V reverse voltage range (VR)
  • 5A to 20A continuous forward current range (IF)
  • 88W to 210W total power dissipation (PD)
  • 23A to 79A to forward surge current (IFSM)
  • 1.2µA to 20.0µA continuous reverse current range (IR)
  • 9nC to 65nC total capacitive charge range (QC)
  • 12ns to 19ns switching time (tc)
  • 175°C maximum junction temperature (Tj)
  • -55°C to +175°C  storage temperature range (Tstg)
  • TO-220ACG package

Applications

  • PFC boost topology
  • Secondary side rectification
  • Data centers
  • PV power conditioners

Related Products

AEC-Q101 SiC Schottky Barrier Diodes

ROHM Semiconductor AEC-Q101 SiC Schottky Barrier Diodes

Delivers breakdown voltages from 600V, far exceeding the upper limit for silicon SBDs.

Learn Moreabout ROHM Semiconductor AEC-Q101 SiC Schottky Barrier Diodes View Productsrelated to ROHM Semiconductor AEC-Q101 SiC Schottky Barrier Diodes
Silicon Carbide (SiC) Power Devices

ROHM Semiconductor Silicon Carbide (SiC) Power Devices

SiC power devices deliver significantly higher performance than the Silicon counterparts.

Learn Moreabout ROHM Semiconductor Silicon Carbide (SiC) Power Devices View Productsrelated to ROHM Semiconductor Silicon Carbide (SiC) Power Devices

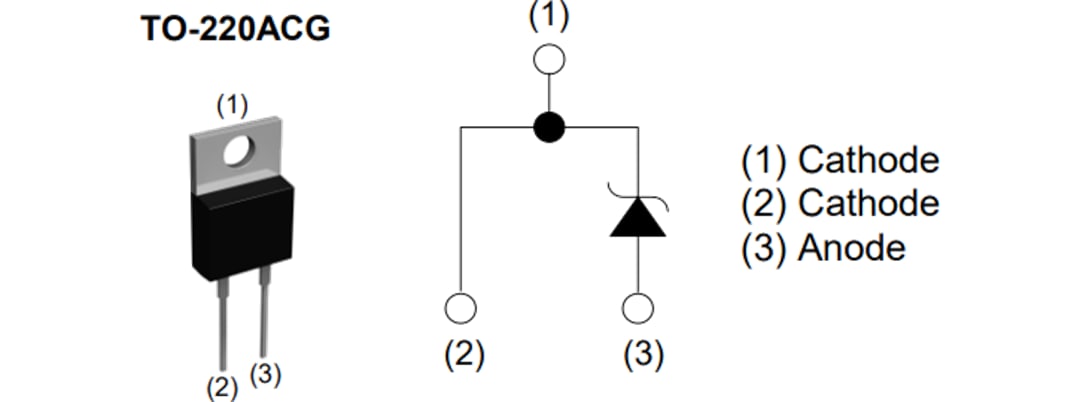

Pinout & Inner Circuit

ROHM Semiconductor TO-220ACG SiC Schottky Barrier Diodes

Package Outline

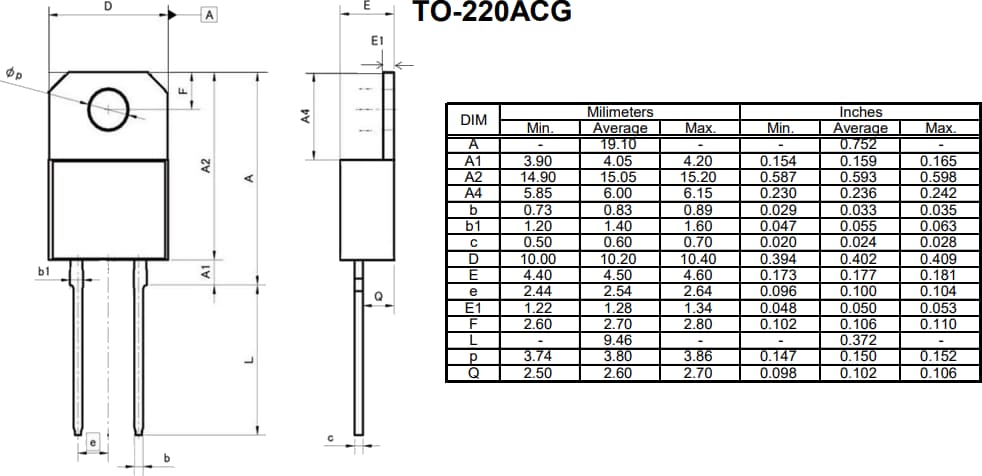

Mechanical Drawing - ROHM Semiconductor TO-220ACG SiC Schottky Barrier Diodes
View Results ( 10 ) Page
Part Number Datasheet If - Forward Current Vrrm - Repetitive Reverse Voltage Vf - Forward Voltage Ifsm - Forward Surge Current Ir - Reverse Current
SCS215KGC17 15 A 1.2 kV 1.6 V 62 A 300 uA
SCS220KGC17 20 A 1.2 kV 1.6 V 79 A 400 uA
SCS210KGC17 10 A 1.2 kV 1.6 V 42 A 200 uA
SCS215AGC17 15 A 650 V 1.55 V 52 A 300 uA
SCS212AGC17 12 A 650 V 1.55 V 43 A 240 uA
SCS220AGC17 20 A 650 V 1.55 V 68 A 400 uA
SCS210AGC17 10 A 650 V 1.55 V 38 A 200 uA
SCS208AGC17 8 A 650 V 1.55 V 30 A 160 uA
SCS206AGC17 6 A 650 V 1.55 V 23 A 120 uA
SCS205KGC17 5 A 1.2 kV 1.6 V 23 A 100 uA
Published: 2021-10-29 | Updated: 2022-03-11
